Product description

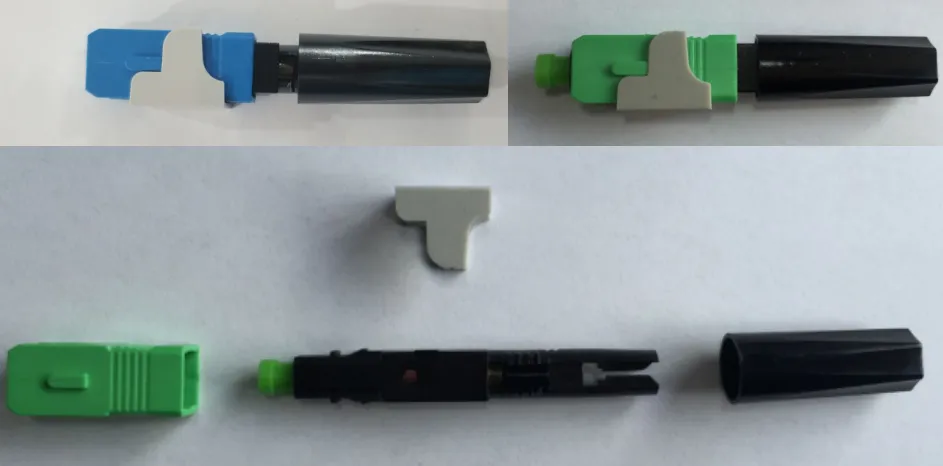

06 SC Connector(SC/UPC &SC/APC)
1.Description:
Fast Field Assembly Optical Connector is designed to manage on-site fiber connections with ease of maintenance for installers. It does not require additional practices or adhesives. It reduces connection defect rate by allowing re-assembling several times in the field.
2.Features:
3. Application:
4.Ferrule Specifications:
|
No |
Parameter |
Specification |
|
1 |
Ferrule Type |
Fully Zirconia-Ceramic |
|
2 |
Nominal ferrule diameter for SC connector |
2.5mm+0.5um |
|
3 |
Fiber Concentricity |
1um |
The ferrule end-face geometry comply with Telcordia GR-326 specifications and is measured based on an optical interferometric measuring technique.
5.Physical Specifications:
|
Item |
Size(mm) |
Insertion Loss |
Return Loss |
|
SS-SC/PC |
51 x 9 x 7.3 |
≤0.3dB |
≥50dB |
|
SS-SC/APC |
51 x 9 x 7.3 |
≤0.3dB |
≥55dB |
6. Technical Specifications
|
Category |
Condition |
Test Standards |
|
Insertion loss |
- |
≤0.3dB |
|
Return loss |
- |
SC/UPC: ≥50dB, SC/APC: ≥55dB |
|
Vibration |
Frequency range: 10-55-10Hz Amplitude: 1.52mm(±0.75mm) Cycle: 4 minutes Time: 1 hour / X.Y.Z direction |
Insertion loss variation: ≤0.3dB |
|
Tension |
more than 5 kg for cable jacket |
Insertion loss variation: ≤0.3dB |
|
Impact |
Free fall: 4 M |
Insertion loss variation: ≤0.3dB |
|
Repeat-connection with adaptor |
1000 times |
Insertion loss variation: ≤0.3dB |
|
Temperature Cycle
|
Cycle: 8 hours Total: 12 cycles / 96 hours Temperature Maintenance: 1 hour *Cycle: 23 → -40 → 23 → +75 → 23 |
Insertion loss variation: ≤0.3dB (before, after and during the test) Return loss: ≥35dB (during the test) No Mechanical damage (including transform, damage) |
| Temperature / Humidity Deterioration |
40 ℃ (relative humidity : 95%) Time: 96 hours |
Insertion loss variation: ≤0.3dB (before, after and during the test) Return loss: ≥40dB (during the test) No Mechanical damage (including transform, damage) |
7.Standard Package
|
# |
Model |
Components |
|
1 |
FAOC-SS06-SC/PC |
FAOC unit, Installation Guide |
|
2 |
FAOC-SS06-SC/APC |
FAOC unit, Installation Guide |
